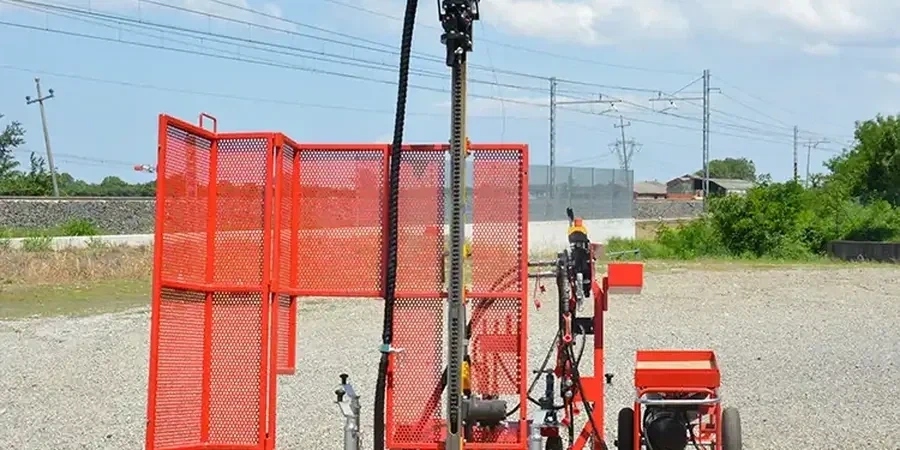

Geotechnical investigation in Winston-Salem forms the critical first step in any construction or civil engineering project, encompassing a suite of subsurface exploration techniques designed to characterize soil, rock, and groundwater conditions beneath a site. These investigations are not merely procedural checkboxes but essential risk-management tools that directly influence foundation design, earthwork strategies, and long-term structural performance. In a city where Piedmont residual soils dominate the landscape, understanding the transition from stiff silty clays to partially weathered rock is paramount for avoiding differential settlement, slope instability, and unexpected excavation challenges. Local practitioners rely on methods ranging from test borings and sampling to advanced in-situ testing, such as the Cone Penetration Test (CPT), which provides continuous profiles of soil behavior without the disturbance associated with traditional drilling.
Winston-Salem's geology is defined by its position within the Piedmont physiographic province, where the underlying bedrock consists primarily of metamorphic and igneous rocks of the Carolina Slate Belt. Over millennia, these rocks have weathered in place to form a mantle of residual soil that can extend tens of feet deep, characterized by a gradual transition from firm, micaceous silty clay to saprolite and eventually competent bedrock. This profile presents unique challenges: the saprolitic zone often retains the texture and structure of the parent rock but behaves as a soil, leading to misclassification risks during excavation. Moreover, the presence of expansive clay minerals in certain formations can introduce shrink-swell hazards that demand specialized testing and foundation detailing. Groundwater is typically encountered within the weathered zone or in fractures of the underlying rock, necessitating careful assessment of dewatering needs and permanent drainage provisions.
Regulatory compliance in North Carolina mandates adherence to the 2018 North Carolina Building Code, which incorporates the International Building Code (IBC) with state-specific amendments. Chapter 18 of the IBC governs geotechnical investigations, requiring a comprehensive report for any structure falling under its scope, with explicit provisions for seismic site classification in accordance with ASCE 7. The North Carolina Board of Examiners for Engineers and Surveyors further stipulates that all geotechnical work must be performed under the responsible charge of a licensed Professional Engineer. Local municipalities, including Winston-Salem and Forsyth County, may impose additional requirements for erosion control, stormwater infiltration testing, and reporting formats during the permitting process. Adhering to these standards ensures not only legal compliance but also the technical defensibility of design recommendations in a region accustomed to the complexities of residual soil behavior.
The types of projects that demand rigorous geotechnical investigation in Winston-Salem span the full spectrum of construction, from high-rise developments in the downtown Innovation Quarter to sprawling residential subdivisions in the city's western growth corridors. Commercial and institutional buildings, such as those on the Wake Forest University campus or within the Piedmont Triad Research Park, require deep foundation analysis where near-surface soils are inadequate for heavy column loads. Transportation infrastructure projects, including the Winston-Salem Northern Beltway, rely on thorough subsurface characterization to optimize cut-and-fill earthwork and design mechanically stabilized earth walls. Even smaller-scale endeavors like retaining walls, swimming pools, and solar farm installations benefit from targeted investigations that prevent costly surprises, while environmental site assessments often integrate geotechnical sampling to delineate contamination pathways through the vadose zone.
Available services
Common questions
What is the typical depth of a geotechnical investigation in Winston-Salem?
Investigation depth in Winston-Salem varies with foundation type and loading, but typically extends through the residual soil profile into competent bedrock. For shallow foundations, borings may reach 15 to 30 feet, while deep foundations like driven piles or drilled shafts often require depths of 50 to 100 feet or more to penetrate the saprolite zone and socket into unweathered rock, ensuring adequate bearing and lateral resistance.
How long does a geotechnical investigation take to complete in the Winston-Salem area?
Fieldwork for a standard commercial site investigation generally spans one to three weeks, depending on the number of borings and access conditions. Laboratory testing of soil and rock samples can add two to four weeks, with the final report typically delivered within four to six weeks from mobilization. Expedited schedules are possible when coordinated early with the geotechnical consultant and local drilling subcontractors.
What regulations govern geotechnical reports in North Carolina?
Geotechnical reports in North Carolina must comply with the 2018 NC Building Code, specifically Chapter 18 of the IBC, and be sealed by a licensed Professional Engineer. The report must address seismic site class per ASCE 7, bearing capacity, settlement, and groundwater conditions. Local Winston-Salem amendments and Forsyth County stormwater requirements may also dictate specific infiltration testing and reporting formats.
Why is residual soil a concern for construction in Winston-Salem?
Residual soils in Winston-Salem, formed from weathered Piedmont bedrock, present engineering challenges due to their heterogeneous nature and transitional saprolite zone. These materials can exhibit variable strength, relic rock structure that complicates excavation, and potential for expansive clay minerals. Mischaracterizing the soil-rock interface can lead to foundation performance issues or unforeseen costs during earthwork and rock removal.
Location and service area
We serve projects across Winston-Salem and surrounding areas.
