The rolling terrain of the North Carolina Piedmont shapes every excavation in Winston-Salem. Residual soils derived from weathered gneiss and schist, combined with saprolite that can extend 50 feet or more below the surface, create conditions where cut stability can shift within hours after a heavy summer thunderstorm. Our monitoring programs at active excavation sites across the city track lateral movement, pore pressure buildup, and vibration levels so that project teams receive actionable data before a condition becomes a problem. For deep cuts near historic masonry buildings downtown, the instrumentation package often includes inclinometers and piezometers that feed into a daily reporting protocol tied to threshold values calibrated for the local saprolite profile. When the excavation plan calls for soldier pile walls or soil nail reinforcement, we integrate the monitoring data with slope stability analysis to verify that design assumptions hold as the cut advances through varying grades of weathered rock.
In Piedmont residual soils, the time between a measurable tilt reading and a structural crack can be measured in hours, not days.
Scope of work
Area-specific notes
The transformation of Winston-Salem's downtown over the past two decades, including the Innovation Quarter redevelopment and multiple mixed-use projects along Fourth Street, has pushed excavations closer to century-old brick structures with shallow, unreinforced foundations. When a 30-foot cut is made within 15 feet of a building that has stood since the 1920s on spread footings bearing directly on partially weathered rock, the risk of settlement-induced cracking is concentrated in the first two weeks after the cut face is exposed. Saprolite in this area can lose significant strength upon stress relief and moisture fluctuation, a phenomenon documented in multiple geotechnical reports for projects across Forsyth County. Without real-time tilt monitoring on the adjacent structure and inclinometer readings behind the wall, a progressive failure can develop without visible warning at ground surface. Post-construction forensic reviews have shown that the cost of a monitoring program is typically less than three percent of the repair budget required to underpin a damaged neighboring foundation.
Standards used
ASTM D6230-21: Standard Guide for Monitoring of Ground Movement Using Inclinometers, IBC 2021 Section 3309: Protection of Adjoining Property During Construction, ASCE 7-22 Chapter 21: Site-Specific Geotechnical Investigation and Monitoring Requirements, USBM RI 8507: Blasting Vibration and Airblast Limits for Residential Structures, AASHTO R 27-01: Standard Practice for Assessment of Ground Conditions During Construction
Linked services
Lateral Deformation Monitoring
Inclinometer casings installed behind shoring walls and in open cut slopes measure subsurface movement at regular depth intervals. Data is compared against design-basis deflection limits and reported within 24 hours of each reading cycle.
Groundwater and Pore Pressure Tracking
Vibrating wire piezometers installed at multiple depths within the saprolite and transition zone record pore pressure changes as dewatering proceeds. The readings help confirm that the drawdown radius stays within the predicted range and that effective stress increases are not triggering consolidation settlement under adjacent footings.
Structural and Vibration Monitoring

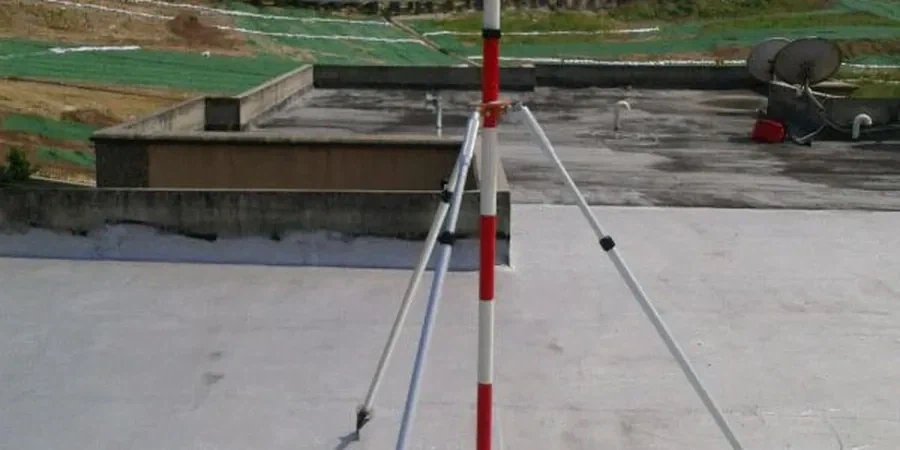

Optical survey points, tiltmeters, and seismographs are deployed on buildings within the zone of influence. Vibration limits follow USBM criteria adjusted for the age and condition of Winston-Salem's historic masonry stock, with real-time alerts if threshold exceedance occurs during rock hammering or blasting operations.
Typical parameters
Quick answers
What instruments are typically required for a deep excavation in Winston-Salem's residual soils?
A standard program for a 25-to-40-foot cut near existing structures includes inclinometers behind the shoring, vibrating wire piezometers to track groundwater response, optical prisms on adjacent building facades, and crack monitors on any existing masonry joints within the zone of influence. The specific instrument count and layout follow the recommendations of the project geotechnical engineer and are calibrated against the saprolite properties identified during the site investigation.
How much does a geotechnical excavation monitoring program cost in the Triad area?
For a typical commercial excavation in Winston-Salem lasting three to six months, monitoring programs generally range from US$780 to US$2,560 depending on the number of instruments, reading frequency, and reporting requirements. Projects with automated total stations and daily data delivery fall toward the upper end, while manual reading programs with weekly reporting are more economical.
How quickly can the monitoring team respond if an instrument reading exceeds the threshold?
Our field personnel in the Triad can be on site within two hours of an alert for projects with automated monitoring systems. For manual reading programs, exceedance is identified during the same-day data review cycle and the project engineer is notified immediately, with a written summary delivered within four hours of the reading.
Does the IBC require excavation monitoring for projects in North Carolina?
IBC Section 3309 mandates that adjoining structures be protected during construction, and the North Carolina Building Code Council has adopted this provision without amendment. While the code does not prescribe a specific instrument list, the geotechnical engineer of record must establish a monitoring plan when the excavation extends below the foundation level of an adjacent building and the zone of influence overlaps the neighboring property.
